Deep Cycle, Marine, RV, Wheelchair & Electric Lift Batteries: Select Equipment: Marine Dual Purpose Marine Deep Cycle Marine Starting Scrubber & Man Lift Golf Cart Wheelchair

Batteries for all types of specialty applications. If you don't see it here, we're sure we have it. Fill in the online Information Form so we can fill your request or send us an E-mail

GA Model Number Nominal Voltage (V) Nominal Capacity 20 hour rate (Ah) Length (in)   Width (in) Height (in) Total Height (in) Weight (lbs) Terminal Types Battery Case 12GA18 12 18.6 7.14 3.01 6.58 6.58 13.1 A,B ABS 12GA33 (U1) 12 32.9 7.69 5.22 6.11 7.1 24.0 A,B,D,E,G,J PP 12GA55 (22NF) 12 56.3 9.04 5.48 8.15 8.98 41.1 A,D,E,G,H,J PP 12GA75(Grp 24) 12 77.5 10.67 6.66 8.15 8.98 54.7 A,D,E,G,H,J PP 12GA100 (Grp 27) 12 91.6 12.53 6.66 8.15 8.98 65.7 A,D,E,G,H,J PP

The new PowerSafe GA range of valve regulated lead acid batteries has been designed to offer competitive solutions for the expanding general standby market.Back to the Top

PowerSafe 12GA18 Its design and specification also make the PowerSafe 12GA18 suitable for other sectors such as emergency lighting. PowerSafe GA incorporates selected design features for the cost conscious user, while still offering superior performance by weight and volume compared to traditional lead acid batteries. Features: Absorbent Glass Mat (AGM)technology for superior performance Valve regulated,spill-proof construction Rugged ABS plastic case and cover Approved for transport by air,D.O.T.,I.A.T.A., F.A.A.and C.A.A.certi .ed U.L.recognized under .le number MH 14328 Choice of terminal Performance Specifications: Nominal Voltage: 12 volts (6 cells in series) Nominal Capacity: 20 hour rate (to 10.50 volts) 18.6 A.H. 8 hour rate (to 10.50 volts) 16.3 A.H. 5 hour rate (to 10.20 volts) 15.6 A.H. Weight: 13.1 pounds (5.9 kg) Float Charge Voltage: 13.50 -13.70V continuously

Back to the Top

PowerSafe 12GA33 Its design and specification also make the PowerSafe 12GA33 suitable for other sectors such as emergency lighting. PowerSafe GA incorporates selected design features for the cost conscious user, while still offering superior performance by weight and volume compared to traditional lead acid batteries. Features: Absorbent Glass Mat (AGM)technology for superior performance Valve regulated,spill-proof construction Rugged ABS plastic case and cover Approved for transport by air,D.O.T.,I.A.T.A., F.A.A.and C.A.A.certi .ed U.L.recognized under .le number MH 14328 Choice of terminal Performance Specifications: Nominal Voltage: 12 volts (6 cells in series) Nominal Capacity: 20 hour rate (to 10.50 volts) 32.9 A.H. 8 hour rate (to 10.50 volts) 29.5 A.H. 5 hour rate (to 10.20 volts) 28.5 A.H. Weight: 24.0 pounds (10.9 kg) Float Charge Voltage: 13.50 -13.70V continuously

PowerSafe 12GA55 Its design and specification also make the PowerSafe 12GA55 suitable for other sectors such as emergency lighting.. Features: Absorbent Glass Mat (AGM)technology for superior performance Valve regulated,spill-proof construction Rugged ABS plastic case and cover Approved for transport by air,D.O.T.,I.A.T.A., F.A.A.and C.A.A.certi .ed U.L.recognized under .le number MH 14328 Choice of terminal Performance Specifications: Nominal Voltage: 12 volts (6 cells in series) Nominal Capacity: 20 hour rate (to 10.50 volts) 56.3 A.H. 8 hour rate (to 10.50 volts) 50.0 A.H. 5 hour rate (to 10.20 volts) 48.1 A.H. Weight: 41.1 pounds (18.7 kg) Float Charge Voltage: 13.50 -13.70V continuously

PowerSafe 12GA75 Its design and specification also make the PowerSafe 12GA75 suitable for other sectors such as emergency lighting.PowerSafe GA incorporates selected design features for the cost conscious user, while still offering superior performance by weight and volume compared to traditional lead acid batteries. Features: Absorbent Glass Mat (AGM)technology for superior performance Valve regulated,spill-proof construction Rugged ABS plastic case and cover Approved for transport by air,D.O.T.,I.A.T.A., F.A.A.and C.A.A.certi .ed U.L.recognized under .le number MH 14328 Choice of terminal Performance Specifications: Nominal Voltage: 12 volts (6 cells in series) Nominal Capacity: 20 hour rate (to 10.50 volts) 77.5 A.H. 8 hour rate (to 10.50 volts) 70.2 A.H. 5 hour rate (to 10.20 volts) 68.0 A.H. Weight: 54.7 pounds (24.9 kg) Float Charge Voltage: 13.50 -13.70V continuously

PowerSafe 12GA100 Its design and specification also make the PowerSafe 12GA100 suitable for other sectors such as emergency lighting.PowerSafe GA incorporates selected design features for the cost conscious user, while still offering superior performance by weight and volume compared to traditional lead acid batteries. Features: Absorbent Glass Mat (AGM)technology for superior performance Valve regulated,spill-proof construction Rugged ABS plastic case and cover Approved for transport by air,D.O.T.,I.A.T.A., F.A.A.and C.A.A.certi .ed U.L.recognized under .le number MH 14328 Choice of terminal Performance Specifications: Nominal Voltage: 12 volts (6 cells in series) Nominal Capacity: 20 hour rate (to 10.50 volts) 91.6 A.H. 8 hour rate (to 10.50 volts) 80.6 A.H. 5 hour rate (to 10.20 volts) 77.2 A.H. Weight: 65.7 pounds (29.8 kg) Float Charge Voltage: 13.50 -13.70V continuously

Back to the Top

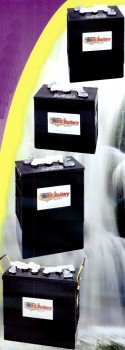

Scrubber & Man Lift Batteries 12 Volt Sweeper US Battery Model Amp Hours (20hr. rate) Minutes @ 75 Amps Minutes @ 25 Amps Length Width Height Weight Cover and Case Pallet Qty EV-145 145 72 270 13-5/8" 6-3/4" 12-1/4" 87 lbs. Blk/Blk 36 US-185 195 100 375 15-1/2" 7-1/16" 14-1/4" 111 lbs. Blk/Blk 14 US-185HC 215 110 418 15-1/2" 7-1/16" 14-1/4" 116 lbs. Blk/Blk 14 6 Volt Sweeper US Battery Model Amp Hours (20hr. rate) Minutes @ 75 Amps Minutes @ 25 Amps Length Width Height Weight Cover and Case Pallet Qty US-250 250 150 540 11-5/8" 7-1/8" 11-1/2" 72 lbs. Blk/Blk 36 US-250HC 275 168 600 11-5/8" 7-1/8" 11-1/2" 78 lbs. Blk/Blk 36 US-305 305 175 675 11-7/8" 7-1/8" 14-5/8" 87 lbs. Blk/Blk 18 US-305HC 335 203 747 11-7/8" 7-1/8" 14-5/8" 96 lbs. Blk/Blk 18 L-16 375 214 810 11-7/8" 7-1/8" 16-1/2" 111 lbs. Blk/Blk 18 L-16HC 415 236 890 11-7/8" 7-1/8" 16-1/2" 117 lbs. Blk/Blk 18 1-HC 95 44 165 8-3/4" 6-7/8" 9 30 lbs. Blk/Blk 72

Golf Car Batteries US Battery Model Amp Hours (20hr. rate) Minutes @ 75 Amps Minutes @ 25 Amps Length Width Height Weight Cover and Case Pallet Qty US-2200 225 115 447 10-1/4" 7-1/8" 11-1/6" 60 lbs. Wht/Red 48

Wheelchair Batteries Wheelchair Convenience Long Service Life Long Shelf Life Durability and Flexibility. Click the link to go directly to complete wheelchair page

GNB Systems SEVERE DUTY SERIES batteries combine all of the best features of calcium maintenance free and lead-antimony technology into a single line of batteries. GNB Systems stocks the full line of SEVERE DUTY Batteries for your commercial needs. When the application requires a power source that will provide extended use, dependability & endurance even through severe temperature, deep cycling, high vibration or other extreme performance conditions. Excellence in design and strict quality controls produce a premium product with a low rate of return. Nationwide warranty Severe Duty Features: - extends cycle life - reduces internal temperature - diminishes gassing during deep cycling - lessens possible failure due to excessive vibration







Simply put, there can be too many variables when specifying a battery to do it all online.
We offer TOLL FREE access so you can get what you need ... THE FIRST TIME
Don't Be Disappointed - Be Satisfied

Call GNB Systems
Toll Free: 1-877-549-4454

70 Years of Experience working for YOU!
